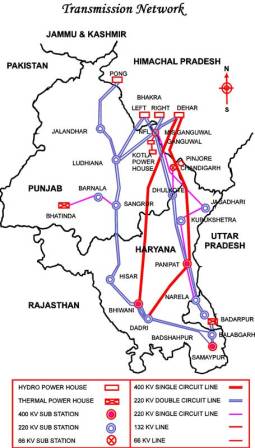

Transmission Network for Evacuation of Power from BBMB Projects. The power generation at BBMB Power stations is being evacuated through BBMB Power Transmission Network system,
running into 3751.96 Circuit Km. length of 400 KV, 220 KV, 132 KV and 66KV transmission lines and 24 EHV Sub-Stations.
TRANSMISSION LINES
|
Line Voltage (KV)
|
Name of Line
|
Single Ckt. (S/C) or Double Ckt. (D/C)
|
Length (Km)
|
Date of Energisation / Commissioning
|
|
1
|
400
|
Dehar-Panchkula
|
S/C
|
124.80 |
12-6-1979 |
|
2
|
400
|
Panchkula -Panipat
|
S/C
|
155.40 |
LILO at Panchkula
|
|
3
|
400
|
Dehar-Rajpura
|
S/C
|
129
|
17/01/1990
|
|
4
|
400
|
Rajpura-Bhiwani
|
S/C
|
212
|
LILO at Rajpura
|
|
5
|
220
|
Ganguwal-Dhulkote
|
D/C
|
112
|
7/61
|
|
6
|
220
|
Dhulkote-Panipat
|
D/C
|
125.84 |
7/61
|
|
7
|
220
|
Panipat-Narela I & II
|
D/C
|
56.90 |
7/61
|
|
8
|
220
|
Panipat-Narela III
|
S/C
|
58
|
02/07/1979 |
|
9
|
220
|
Narela-R/Road Delhi
|
D/C
|
22
|
7/61
|
|
10
|
220
|
Pong-Jalandhar I & II
|
D/C
|
97.50 |
26/1/1978 |
|
11
|
220
|
Pong-Dasuya IV
|
S/C
|
56
|
30/9/1983 |
|
12
|
220
|
Jalandhar- Dasuya IV
|
S/C
|
40
|
LILO
|
|
13
|
220
|
Jamalpur-Jalandhar
|
D/C
|
64
|
16/10/1969 |
|
14
|
220
|
Bhakra-Jamalpur
|
D/C
|
86.4 |
18/11/1968 |
|
15
|
220
|
Jamalpur-Sangrur
|
D/C
|
78
|
30/1/1969 |
|
16
|
220
|
Sangrur-Hisar
|
D/C
|
139
|
16/2/1969 |
|
17
|
220
|
Hisar-Bhiwani I & II
|
D/C
|
57.95 |
5/7/1970 & 16/6/1988 |
|
18
|
220
|
Bhiwani-Dadri I &II
|
D/C
|
36.45 |
5/7/1970 & 16/6/1988 |
|
19
|
220
|
Bhiwani-Dadri III & IV
|
D/C
|
34.70 |
17/3/1990 & 9/10/1990 |
|
20
|
220
|
Ballabgarh-Badarpur I & II
|
D/C
|
24.73 |
16/11/1968 & 24/3/1971 |
|
21
|
220
|
Bhakra-Ganguwal I & II
|
D/C
|
21
|
Line Relates to Generation
|
|
22
|
220
|
Bhakra -Ganguwal III & IV
|
D/C
|
22
|
Line Relates to Generation
|
|
23
|
220
|
Bhakra_GanguwalCkt V
|
S/C
|
22
|
Line Relates to Generation
|
|
24
|
220
|
Samayapur-Ballabgarh I & II
|
D/C
|
4.23 |
9/4/1989 & 31/3/1989 |
|
25
|
220
|
Samayapur-Ballabgarh
|
S/C
|
5.50 |
25/5/1988 |
|
26
|
220
|
Dehar-Ganguwal
|
D/C
|
56
|
Line relates to generation
|
|
27
|
220
|
Dadri-Ballabhgarh
|
S/C
|
119.90 |
25/1/1976 |
|
28
|
220
|
Samaypur-Dadri
|
S/C
|
116.40 |
13/3/1991 |
|
29
|
220
|
Bhakra (L)-Ganguwal
|
S/C
|
22
|
Line relates to generation
|
|
30
|
220
|
Sangrur-Barnala
|
S/C
|
38.14 |
8/2/1976 |
|
31
|
220
|
Barnala-LehraMohabbat
|
S/C
|
37.88 |
11/5/1987 |
|
32
|
220
|
Lehramohabbat-Bathinda
|
S/C
|
23.29 |
1997
|
| 33 |
220
|
Ganguwal-Jagadhari
|
S/C
|
158.65 |
1/1/1978 |
|
34
|
220
|
Panipat-Dadri
|
S/C
|
115
|
26/6/1978 |
|
35
|
220
|
Kurukshetra-Panipat
|
S/C
|
77.08 |
1/1/1978 |
|
36
|
220
|
Jagadhari-Kurukshetra
|
S/C
|
48.30 |
1/1/1978 |
|
37
|
220
|
Dadri-Mohindergarh II
|
S/C
|
41
|
21/6/2003 , line relates to HPGCL
|
|
38
|
132
|
Ganguwal-Kotla
|
D/C
|
|
Line Relates to Generation
|
|
39
|
66
|
Chandigarh-Dhulkote
|
D/C
|
45
|
1953
|
|
40
|
66
|
Bhakra (L)-NayaNangal
|
D/C
|
9
|
Line Relates to Generation
|
|
41
|
66
|
Pinjore-Chandigarh
|
S/C
|
12
|
1976 ,Relates to HPGCL
|
|
42
|
66
|
Pinjore-Chandigarh
|
S/C
|
18
|
1976
Relates to HPGCL
|
|
43
|
66
|
Bhakra(L)-NayaNangal
|
S/C
|
9
|
Line Relates to Generation
|
Sub Stations
Sr. No. |
Name of Substation
|
Date of commissioning
|
Historical importance
|
|
|
a) 400 KV Sub-Stations
|
| i |
400 KV Dehar Sub-Station
|
|
the substation is very important for evacuating the power generated by 6 X 165 MW capacity machines having two 400 KV lines , three 220 KV lines & one 132 Kv line. |
|
a) 220 KV S/Stn.
|
12/11/1977 |
|
|
b) 400 KV Dehar-Panipat |
12/06/1979 |
|
| ii |
400 KV S/Stn. Panipat
|
12/1976 |
The first 400 KV BBMB S/Stn. Constructed by Beas Project in 1969. Twenty two 220 KV bays, ten 132 KV bays. Connected to Dehar Power House through 400KV Dehar-Panipat S/C line and Power Grid,Dadri through 400KV Panipat-Dadri S/C line. |
|
| iii |
400 KV S/Stn.Bhiwani
|
17/6/1988
|
Second 400 KV BBMB S/Stn. constructed by BCB in 1983. Connected to Dehar Power House through DeharBhiwani line and 400KV Hisar&Bawana Substations of Power Grid through Bhiwani-Hisar&Bhiwani-Bawana lines. |
|
|
b ) 200 KV Sub-Stations
|
| i |
220 KV S/Stn, Pong
|
20/01/1978 |
220KV Substation helps in evacuation of power from BairasiulHydro electric project. It supplies power to 220 KV PSEB Sub-station Dasuya, 66 KV PSEB Substation, Talwara to Amroh and 66 KV HPSEB Substation Sansarpur Terrace. |
|
| ii |
220 KV Sub-station (Bhakra Left Bank)
|
1960-61
|
The power is being evacuated through two 66KV Bhakra-National Fertilizer Ltd. Nangal feeders, one 66 KV Bhakra-PACL Nangal feeder, one 66KV Bhakra-HPSEB feeder and three 220KV Bhakra-Ganguwal feeders.
|
|
| iii |
220KV Sub-station (Bhakra Right Bank)
|
1966-68
|
The power is being evacuated through two 220KV Bhakra-Jamalpur feeder, two Bhakra-Ganguwal feeders and two Bhakra-Mahilpur feeders.
|
|
| iv |
220 KV Major Interlinking Sub-station (MISS) Ganguwal
|
12/1968
|
It is a major interlinking Sub-station commissioned in December 1968. Initially, seven Bays were commissioned and later on eleven more Bays have been commissioned from time to time. This Substation plays an important role for evacuation of power generated
at different Hydro Power Stations, viz. Bhakra Left, Bhakra Right, Dehar Power House and Ganguwal &Kotla Power Houses and transmission of power to the Partner States of BBMB.
|
|
| v |
220 KV S/Stn, Ballabgarh
|
17/11/1968 |
Connected with BTPS through 220KV D/C line and HPGCL, Faridabad Thermal through 66KV side. |
|
| vi |
220 KV S/Stn.Samaypur
|
9/88
|
Created for dispersal of Power from Singrauli&Rihand Super Thermal Power Stations. Connected with 400 KV PGCIL, Samaypur Substation through Four 400/220KV, 315MVA ICTs and with Faridabad Gas Power Plant (CCGT) through 220KV D/C line.
|
|
| vii |
220 KV S/Stn., Narela
|
1972
|
Constructed by BCB by extending two 220KV Buses from Grid Substation of DTL.
|
|
| viii |
220 KV S/Stn. Delhi
|
1958
|
Constructed under Left Bank Power Project in 1958. Supplies power to DTL through 33KV feeders for which DTL pays rentals.
|
|
| ix |
220 KV S/Stn., Kurukshetra
|
12/77
|
Constructed by BCB.Two no. 220 KV Bays(Jagadhari and Panipat).
|
|
| x |
220 KV S/Stn. Jamalpur
|
18/11/1968 |
Feeding Punjab areas. |
|
| xi |
220 KV S/Stn. Jalandhar
|
16/10/1969 |
Feeding Punjab areas. |
|
| xii |
220 KV S/Stn. Hissar
|
23/02/1969 |
Feeding Haryana and some parts of Rajasthan. |
|
| xiii |
220 KV S/Stn., Sangrur
|
1968-69
|
Feeding Punjab areas.
|
|
| xiv |
220 KV S/Stn., Barnala
|
11/05/1987 |
Switching substation. |
|
| xv |
220 KV S/Stn., Dhulkote
|
1962
|
Feeding Haryana and UT Chandigarh.
|
|
| xvi |
220 KV S/Stn., Jagadhari
|
31/05/1978 |
Feeding Haryana areas. |
|
| xvii |
220 KV S/Stn., CharkhiDadri
|
22/10/1977 |
Feeding Haryana and Rajasthan areas. |
|
|
c) 132 KV Sub Stations
|
|
i
|
132 KV Sub-Stations i.132 KV Sub-station (Ganguwal P.H.).
|
|
Kotla& Ganguwal Power Houses have been interlinked through two 132 KV Tie Circuits for transfer of Power depending upon the requirement of Power at Ropar end.
|
|
|
ii
|
132 KV Substation (Kotla P.H.)
|
|
---do---
|
|
|
iii
|
66 kV S/S Chandigarh
|
1953
|
Feeding U.T Chandigarh areas.
|
|
